Magnetic Catch 30
Part. N° 21.9310
CAD DOWNLOAD ► 3D STEP | | Inventor 2022
| APPLICATIONS |
|---|

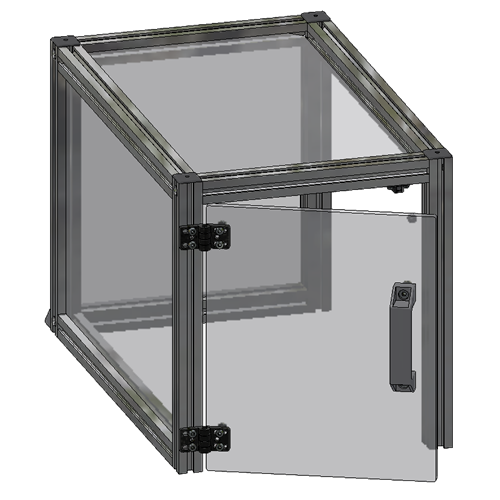

| - Particularly use full for unframed doors on 30 series profiles. |

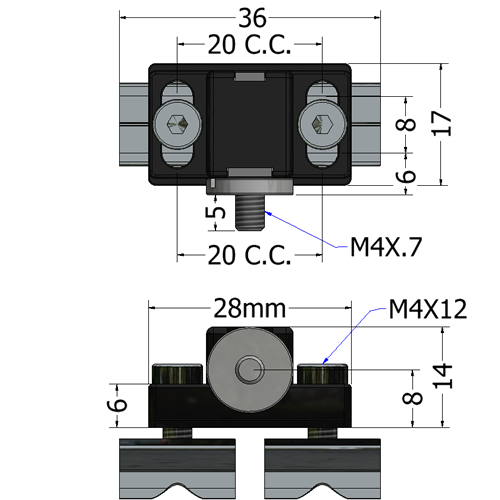

| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Magnet with black nylon housing | |
| --M4 x 5 Pan Head Screw | |
| - Qty 2, M4 x 12 Zinc Plated Screws | |
| - Qty 2, M4 Nuts With Position Fixing (30 series) | |
| - Holding force 5N on front & 3N on back | |
| - Weight | - .023 kg |
Click here for
larger animation
| ASSEMBLY |
|---|

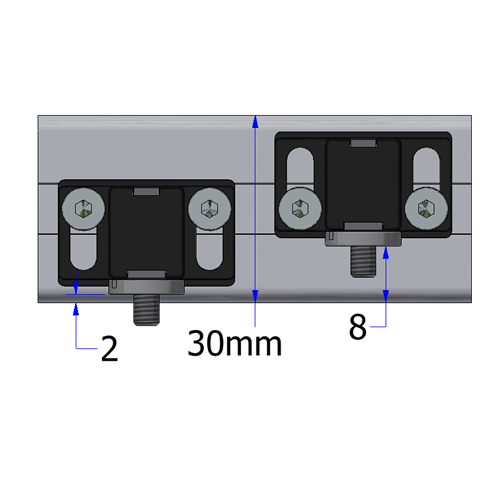

| - Mount magnet housing to 30 series profiles with supplied hardware |
| - Drill 3.5mm hole & self thread pan head screw into soft plastics, like polycarbonate or high density polycarbonate |
| - Drill 3.5mm hole & cut tap M4 x .7 into metals or harder more brittle plastics |
